PRO CHOICE
Mastercraft USA
Sootmaster Vacuum | 641M
Industrial-grade vacuum for soot, ash and fire restoration. Steel construction built for chimneys, boilers and flue pipes in professional cleanup.
$980
Fast Shipping
In Stock
· Ready to ship
1 HP
MOTOR
94 CFM
AIRFLOW
3.5 Gal
STEEL TANK
10 Ft
HOSE
Choose Your Size & Type
You're viewing
PRO CHOICE
Sootmaster Vacuum | 641M
$980
Sootmaster Vacuum | 652M
$1,010
Made in USA
Industry-Leading Warranty
80+ Years in Business
Expert Support
(845) 565-8850
Pro Tip: After each use, empty and wipe the steel tank interior before the ash cools and compacts — hardened soot is significantly harder to remove and can cause odor issues in your vehicle. Keep a spare 14" cloth filter on hand; fine soot clogs cloth filters faster than standard dust. Shop INFILTRATOR® Filter Bags →

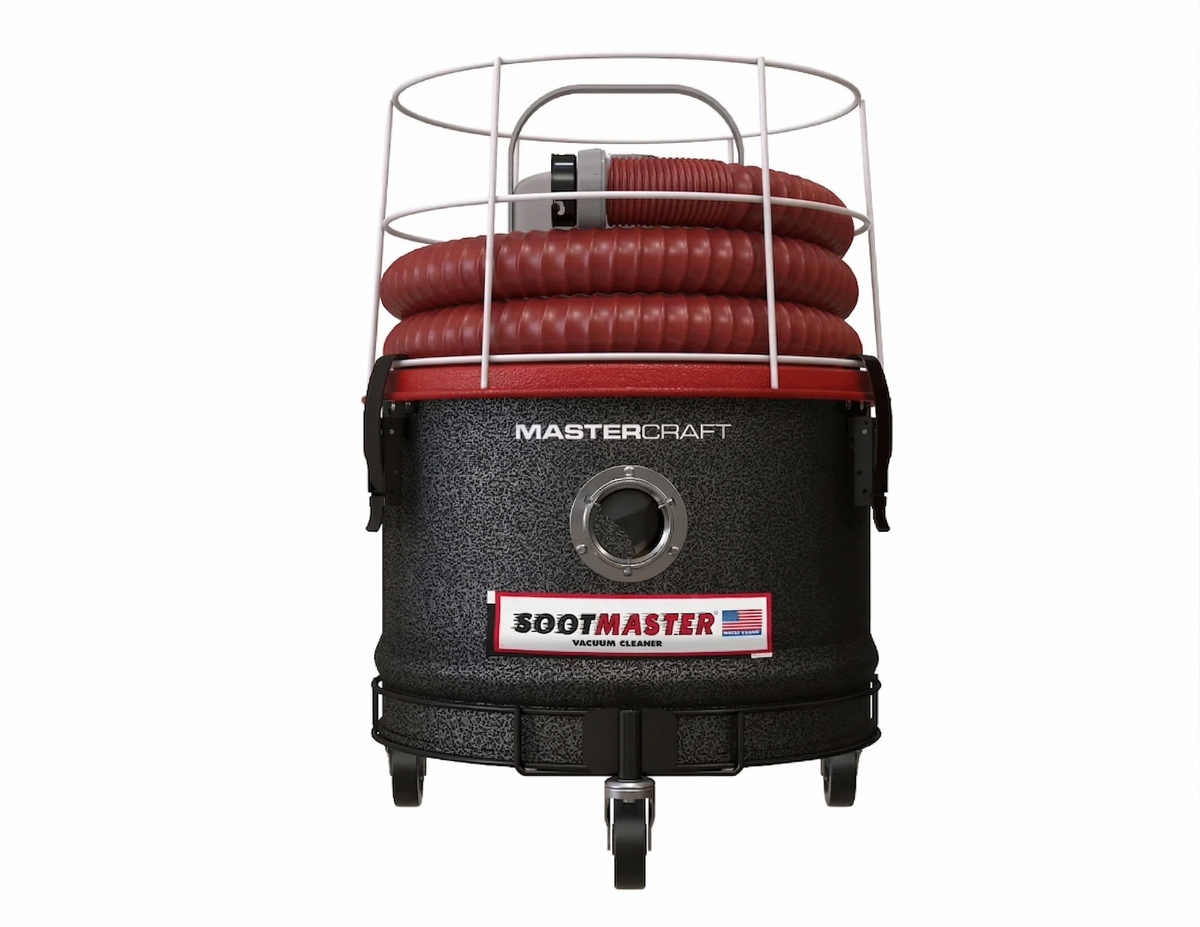

Sootmaster Vacuum | 641M
The Sootmaster 641M is purpose-built for chimney sweeps and HVAC contractors who clean solid-fuel heating systems — chimneys, boilers, flue pipes, and fireboxes — as a core part of their service work. Using a general-purpose vacuum for soot creates cross-contamination problems and accelerates motor wear from fine carbon particulate. The 641M eliminates that risk with a dedicated 1 HP motor, 94 CFM airflow, and a detachable cold-rolled steel tank sized for efficient ash disposal. The 3.5-gallon detachable steel tank is the central feature for professionals: when it's full, it lifts out of the base, seals, and can be transported directly to a disposal point without secondary transfer. The included 10-foot rubber-lined canvas hose is flexible enough to navigate around firebox openings and flue curves without collapsing under suction. Made in Newburgh, NY. For chimney sweep businesses running multiple jobs per day, the 641M pays for itself in reduced cleanup time and protected equipment. A standard vacuum put on soot duty will show motor degradation within months. The 641M is designed for that daily load, with a warranty and available replacement parts to match.
- 1 HP motor at 120V delivers 94 CFM of suction for efficient soot and carbon pickup from chimney flues and combustion chambers
- 3.5-gallon detachable cold-rolled steel tank withstands the abrasive nature of soot and carbon residue from combustion systems
- 10-foot rubber-lined hose with 14-inch cloth filter and paper filter bag for contained and portable soot capture
- Engineered specifically for cooled soot from wood, coal, oil, and gas combustion systems not a general-purpose vacuum
- Compact caster-mounted design provides maneuverability in residential and light-commercial boiler and furnace rooms
- Manufactured in USA and backed by Mastercraft warranty for chimney sweep and HVAC service professionals
| Model | Sootmaster® 641M |
| Type | Dedicated Soot & Ash Vacuum |
| Motor | 1 HP, 120V |
| Airflow (CFM) | 94 |
| Current Draw | 7 Amps |
| Tank Capacity | 3.5 Gallon (0.5 Bushel) |
| Tank Material | Cold-Rolled Steel |
| Hose | 10 ft Rubber-Lined |
| Filter | 14" Cloth Filter + Paper Filter Bag |
| Pickup Type | Dry Only |
| Applications | Chimney Cleaning, Boiler Maintenance, Flue Pipe Cleaning, Fire Restoration |
| Made In | USA |
| 641M ★ | 652M | |
|---|---|---|
| BEST FOR | Chimney Sweeps / Light Commercial | HVAC Contractors / Larger Volume |
| MOTOR | 1 HP | 1 HP |
| CFM | 94 | 94 |
| TANK | 3.5 Gal Steel | 5.25 Gal Steel |
| FILTER TYPE | Cloth + Paper Bag | Cloth + Paper Bag |
| HEPA | × | × |
| APPLICATION | Chimney, Boiler, Flue Pipe | Chimney, Boiler, Flue Pipe, HVAC |
| PRICE | $980 | $1,010 |
Both models use the same 1 HP motor and produce 94 CFM of suction. The primary difference is tank capacity: the 641M has a 3.5-gallon (0.5 bushel) steel tank suited for residential chimney sweeping and lighter-volume work, while the 652M has a 5.25-gallon (0.75 bushel) steel tank designed for higher-volume commercial jobs such as industrial boiler maintenance and multi-flue HVAC cleaning. If you are servicing multiple appliances per visit, the 652M reduces the frequency of emptying.
No. The SootMaster uses a 14" cloth filter and disposable paper filter bag system. It is engineered specifically for soot, ash, and carbon residue from combustion systems — materials that are heavy and fall out of suspension quickly. For jobs involving regulated fine particulate such as asbestos or lead dust, use an Enviromaster® Critical HEPA vacuum instead.

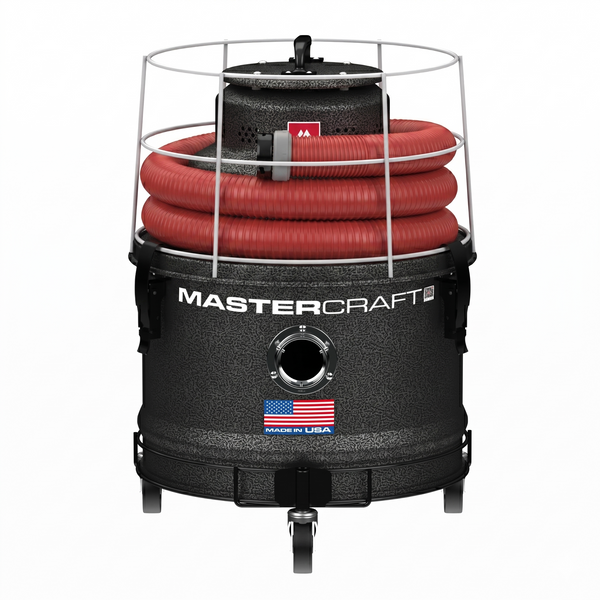

No. The SootMaster is designed for cooled soot and ash residue only. Never vacuum hot embers, live ash, or any material above ambient temperature — doing so creates a fire and explosion hazard and will damage the vacuum. Always allow ash and residue to cool completely (typically 24 hours for fireplaces and wood stoves) before vacuuming. For high-temperature industrial residue, see the Mastercraft® Industrial Ash Vacuum.
Both the 641M and 652M use 14" cloth filters and compatible paper filter bags (available in 5-packs). Replace the paper bag when approximately two-thirds full to maintain suction. Inspect and clean the cloth filter after every 5–10 uses, and replace it when tears, holes, or heavy residue buildup are visible.
The 652M is UL Listed for safety compliance. Both models are manufactured to the same quality standards. Check your local and state regulatory requirements to confirm which certification is required for your jurisdiction or contracting work.
After each use, remove and empty the steel tank, wipe the interior clean before residue cools and hardens, and inspect the cloth filter for tears or buildup. Store with the tank empty and lid unsealed to prevent odor buildup. Inspect hose connections and rubber lining for cracks before each job. For commercial service work, Mastercraft® recommends starting each job with a fresh paper bag to document clean filtration.
