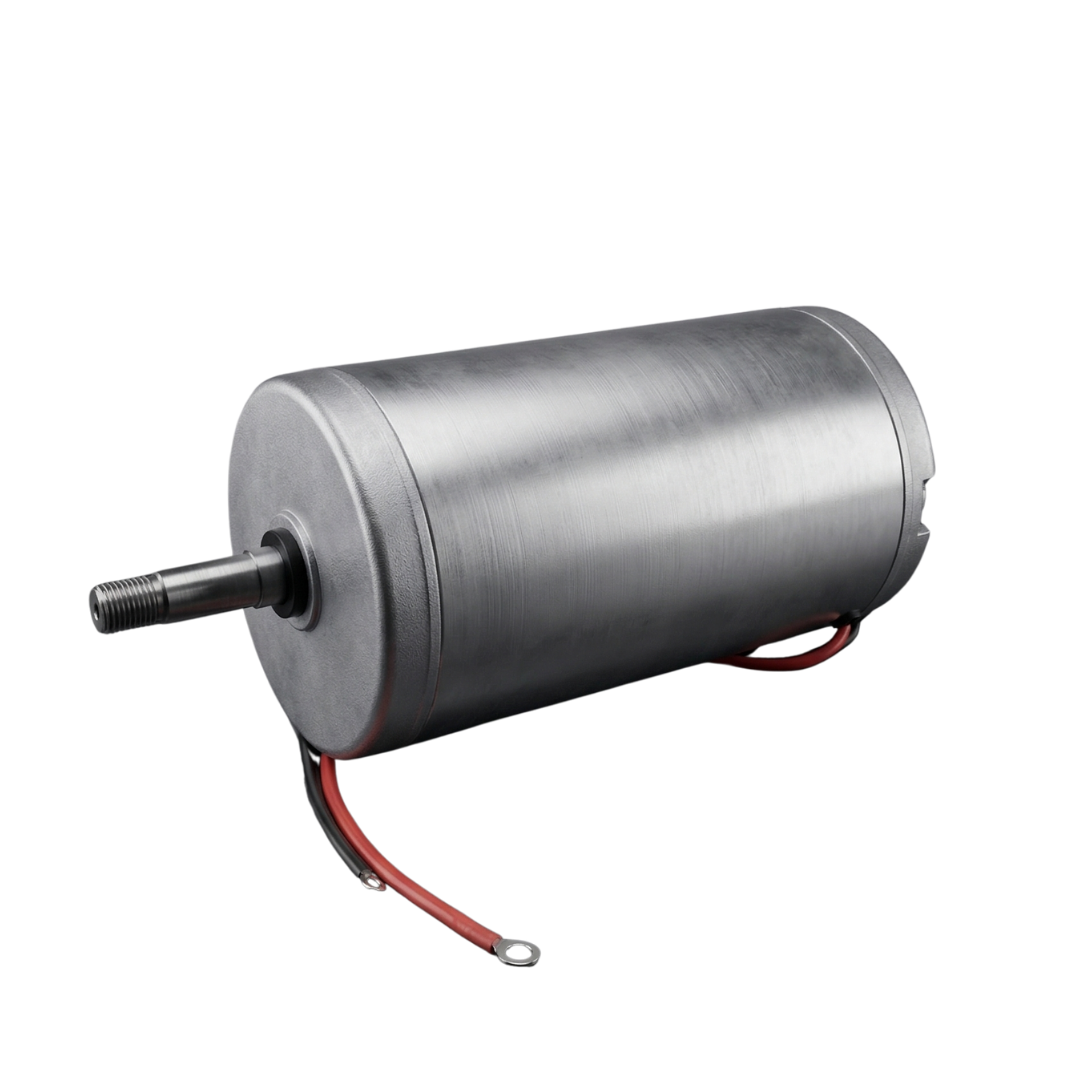

Mastercraft® Replacement Motor for Wide Area Hard Floor & Carpet Vacuum Cordless — Battery Operated, 0.62 HP, 36V DC

Mastercraft® Replacement Motor for Wide Area Hard Floor & Carpet Vacuum Cordless — Battery Operated, 0.62 HP, 36V DC

Mastercraft® Replacement Motor for Wide Area Hard Floor & Carpet Vacuum Cordless — Battery Operated, 0.62 HP, 36V DC The Mastercraft® Replacement Motor for Wide Area Hard Floor & Carpet Vacuum Cordless — Battery Operated is an industrial-grade permanent magnet DC motor engineered for the cordless Wide Area Hard Floor and Carpet Vacuum. Running on 36V DC battery power, this motor delivers consistent high-performance cleaning without the limitations of a power cord — ideal for large open floor areas in commercial environments. Key Features 0.62 HP output for powerful, reliable floor cleaning performance 36V DC battery-powered — designed for cordless operation 4,700 RPM at load for efficient wide area coverage Continuous duty rated at 75% efficiency Industrial-grade ball bearing construction for smooth, long-lasting operation Internal brush design — Permanent Magnet DC motor Clear zinc plating for corrosion resistance Class H insulation for high thermal tolerance Specifications Power: 0.62 HP Voltage: 36V DC Current: 20A Max Speed at Load: 4,700 RPM No Load Speed: 5,000 RPM Load Torque: 8.0 IN-LB Duty Cycle: Continuous Efficiency at Load: 75% Motor Type: Permanent Magnet DC (DM40 Frame) Bearing Type: Ball Bearing Insulation Type: Class H Weight: 7.5 lb Thermal Protection: No RoHS Compliant: No Compatible Mastercraft® Machines Wide Area Hard Floor and Carpet Vacuum Cordless — Battery Operated 611816 (SV280B)

• OEM DC replacement motor rated at 0.62 HP and 36 volts for the Mastercraft SV280-BATTERY cordless wide area vacuum
• Continuous-duty DC motor design matched to 36V lithium-ion battery system for full cordless performance restoration

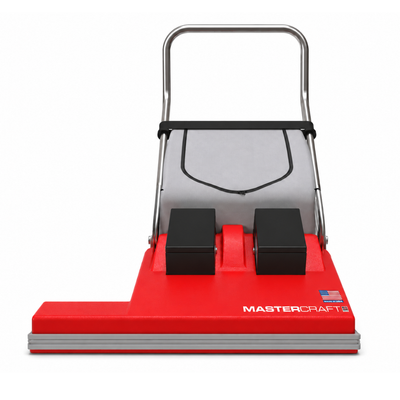

• Compatible exclusively with the Mastercraft SV280-BATTERY (cordless) model — not compatible with corded SV280
• Drop-in replacement maintains original motor housing fitment and battery connector interface for technician serviceability
• Using genuine Mastercraft OEM DC motor preserves warranty coverage and restores original cordless runtime performance
• Contact Mastercraft USA with model number and serial number to confirm compatibility before ordering
