Sootmaster® Soot Vacuums, 641M and 652M
Two steel-tank soot and ash vacuums with the same 1 HP motor and 94 CFM: the 641M with a 3.5 gallon tank for chimneys and lighter-volume work, and the 652M with a 5.25 gallon tank for boiler rooms and multi-flue jobs.
Built by Mastercraft® in Newburgh, NY. Add filter bags, filters, a metal hose and other parts to the same order.
Why Professionals Choose Sootmaster®
Built for Soot and Ash
Engineered for chimney sweeps, HVAC and boiler technicians, restoration crews and maintenance teams who clean combustion systems every day.
1 HP Motor, 94 CFM
Both models run a 1 HP, 120V motor with 94 CFM of airflow. It draws 7 amps, so it runs on a standard circuit.
Cloth Filter and Infiltrator® Bags
A 14-inch cloth filter and Infiltrator® filter bags keep soot and ash in the tank and the work area cleaner. Start each job with a fresh bag.
A Steel Tank That Lifts Off
The cold-rolled steel tank detaches to empty, and casters roll it through tight utility rooms. The 641M holds 3.5 gallons, the 652M 5.25 gallons.
Safest vacuum for soot
“This is the Cadillac of vacuums for heating appliances, chimneys, and more.”
Tee SeeVerified Review
Where It Works
Boiler Rooms, Furnaces and Flues

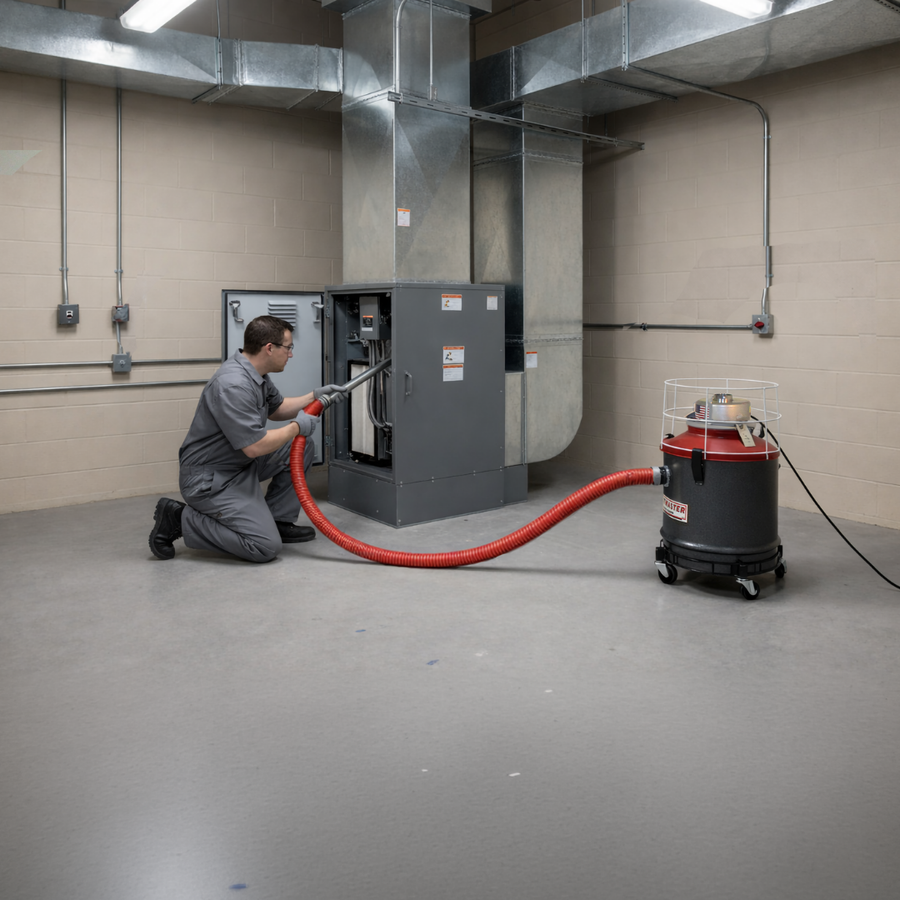

The 641M and 652M are built for cooled soot and ash from chimneys, boilers, furnaces and flue pipes.
From the Field
What Sootmaster® Owners Say
Verified reviews from Sootmaster® owners.
“Heavy duty and well built”
“good product good price”
The Machines
Two Models. Same Motor.
The 641M and 652M share a 1 HP motor, 94 CFM of airflow, the same 10 ft HTCR hose and tools, and a 14-inch cloth filter. Choose by tank size.
Which one is right for your facility?
Choose the 641M if…
you sweep residential chimneys and fireboxes and want the compact 3.5 gallon tank.
Choose the 652M if…
you service boilers, furnaces and several flues per visit and want the 5.25 gallon tank, so you empty it less often.
| Spec | 641M | 652M |
|---|---|---|
| Model | 641M | 652M |
| Motor | 1 HP, 120V | 1 HP, 120V |
| Airflow | 94 CFM | 94 CFM |
| Current Draw | 7 amps | 7 amps |
| Tank | 3.5 gallon (0.5 bushel) cold-rolled steel | 5.25 gallon (0.75 bushel) cold-rolled steel |
| Hose | 10 ft HTCR hose | 10 ft HTCR hose |
| Filter | 14 in. cloth filter + Infiltrator® filter bag | 14 in. cloth filter + Infiltrator® filter bag |
| Included | 14 in. hose cage, 14 in. filter frame, 14 in. cloth filter, 1.5 in. steel crevice tool, 1.5 in. swivel connector, HTCR hose, Infiltrator® filter bags (5 to 9 gallon, 5-pack) | 14 in. hose cage, 14 in. filter frame, 14 in. cloth filter, 1.5 in. steel crevice tool, 1.5 in. swivel connector, HTCR hose, Infiltrator® filter bags (5 to 9 gallon, 5-pack) |
| SKU | 343978 | 344028 |

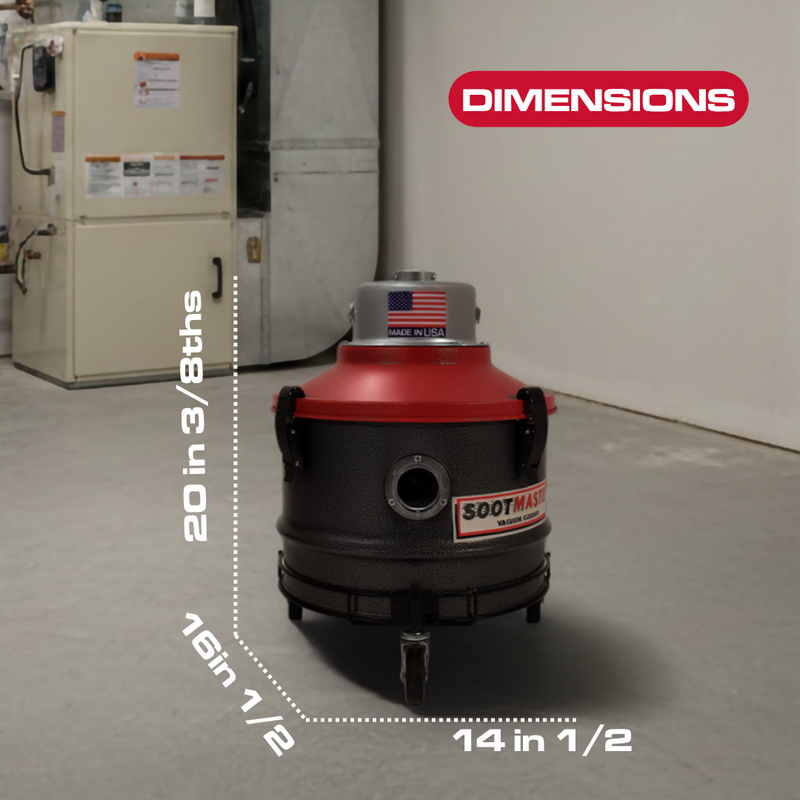

Sootmaster® Vacuum 641M
3.5 gallon steel tank for chimney sweeping and lighter-volume work.
- Model: 641M
- Motor: 1 HP, 120V
- Airflow: 94 CFM
- Current Draw: 7 amps
- Tank: 3.5 gallon (0.5 bushel) cold-rolled steel
- Hose: 10 ft HTCR hose
- Filter: 14 in. cloth filter + Infiltrator® filter bag
- Included: 14 in. hose cage, 14 in. filter frame, 14 in. cloth filter, 1.5 in. steel crevice tool, 1.5 in. swivel connector, HTCR hose, Infiltrator® filter bags (5 to 9 gallon, 5-pack)
- SKU: 343978
Sootmaster® Vacuum 652M
5.25 gallon steel tank for boiler rooms and multi-flue jobs. UL Listed.
- Model: 652M
- Motor: 1 HP, 120V
- Airflow: 94 CFM
- Current Draw: 7 amps
- Tank: 5.25 gallon (0.75 bushel) cold-rolled steel
- Hose: 10 ft HTCR hose
- Filter: 14 in. cloth filter + Infiltrator® filter bag
- Included: 14 in. hose cage, 14 in. filter frame, 14 in. cloth filter, 1.5 in. steel crevice tool, 1.5 in. swivel connector, HTCR hose, Infiltrator® filter bags (5 to 9 gallon, 5-pack)
- SKU: 344028
How to Order
Three Steps to Your Sootmaster®
Order online, or ask for a written quote.
Pick Your Model
The 641M for chimneys and lighter-volume work, the 652M for boiler rooms and multi-flue jobs.
Add Filters and Parts
Infiltrator® filter bags, cloth filters, a metal hose and an HTCR hose fit both models. Add the quantities you want.
Check Out Direct
Pay at checkout, or use the quote form for a written quote. Questions: (845) 565-8850.
Questions
Before You Order
A person answers at (845) 565-8850.
What is the difference between the 641M and 652M?
Both models use the same 1 HP motor and produce 94 CFM of suction. The difference is tank capacity: the 641M has a 3.5 gallon (0.5 bushel) steel tank suited for residential chimney sweeping and lighter-volume work, while the 652M has a 5.25 gallon (0.75 bushel) steel tank designed for higher-volume commercial jobs such as industrial boiler maintenance and multi-flue HVAC cleaning. If you service several appliances per visit, the 652M means emptying less often. Both come with the same 10 ft HTCR hose and tools.
Can I vacuum hot ash or active embers?
No. The Sootmaster® is designed for cooled soot and ash residue only. Never vacuum hot embers, live ash or any material above room temperature: doing so creates a fire and explosion hazard and will damage the vacuum. Always let ash and residue cool completely (typically 24 hours for fireplaces and wood stoves) before vacuuming.
What filters and filter bags does the Sootmaster® use?
Both the 641M and 652M use a 14 in. cloth filter and Infiltrator® filter bags in the 5 to 9 gallon size, sold in 5-packs. Replace the bag when it is about two-thirds full to keep suction up. Inspect and clean the cloth filter every 5 to 10 uses, and replace it when tears, holes or heavy buildup show. Add bags and filters in the order section, or call (845) 565-8850.
Is the Sootmaster® UL Listed?
The 652M is UL Listed. Both models are built to the same quality standards. Check your local and state requirements for the listing your jurisdiction or contracting work calls for.
What maintenance does it need between jobs?
After each use, empty the steel tank, wipe the inside clean before residue cools and hardens, and inspect the cloth filter for tears or buildup. Store it with the tank empty and the lid unsealed to prevent odor. Check the hose and its connections for cracks before each job. Mastercraft® recommends starting each job with a fresh filter bag.
Can I add filters and parts to my order?
Yes. Infiltrator® filter bags, the 14 in. cloth filter, cloth filter assembly, filter frame, hose cage, intermediate filters, a metal hose, the steel crevice tool and an HTCR hose fit both the 641M and 652M. Add them in the order section with the quantities you want.
What warranty comes with it?
Each Sootmaster® is backed by a 1-year warranty. Call (845) 565-8850 for the terms, and for replacement parts after that.
Order
Order Direct From Mastercraft®
Choose your model and the quantity, then add filter bags, filters and parts to the same cart.
Buy from the manufacturer
Choose your models and quantities
641M
3.5 gallon steel tank for chimney sweeping and lighter-volume work.
$980
652M
5.25 gallon steel tank for boiler rooms and multi-flue jobs. UL Listed.
$1,010
Add parts to the same order
Order Summary
Purchase Order
Need a Written Quote?
Most facilities buy on a purchase order. Send the details and a person replies the same business day.
Ready When You Are
Ready to Upgrade Your Equipment?
Order the 641M or 652M direct from Mastercraft®, with filters and parts in the same cart. A person answers at (845) 565-8850.
