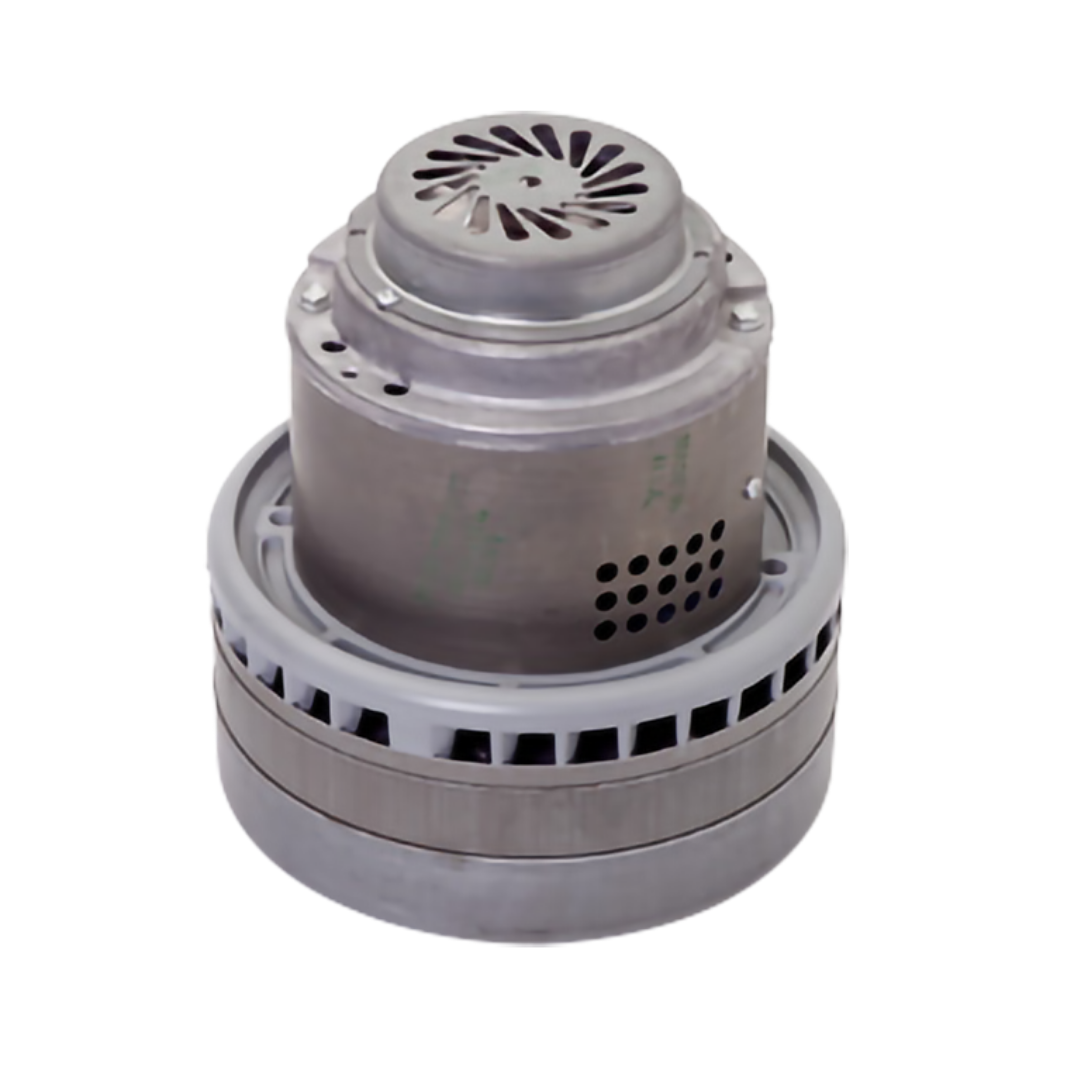

Mastercraft® Replacement Motor for Industrial Ash Vacuum for High-Temp Cooled Residues — 3-Stage Bypass, 1300W, 120V AC

Mastercraft® Replacement Motor for Industrial Ash Vacuum for High-Temp Cooled Residues — 3-Stage Bypass, 1300W, 120V AC

Mastercraft® Replacement Motor for Industrial Ash Vacuum for High-Temp Cooled Residues — 3-Stage Bypass, 1300W, 120V AC The Mastercraft® Replacement Motor for Industrial Ash Vacuum for High–Temp Cooled Residues is a high-performance 3-stage bypass vacuum motor engineered for the most demanding commercial and industrial cleaning applications. With its larger 7.2" frame and triple-stage fan configuration, this motor delivers exceptional suction power across a wide range of specialty vacuums — from high-temp ash collection to critical HEPA backpack and wet/dry squeegee systems. Key Features 3-Stage fan configuration — high-performance suction for demanding applications Bypass design — protected motor core, ideal for ash, fine dust, and wet/dry recovery 1300W output at 120V AC Up to 135" H₂O sealed vacuum and 125 CFM airflow Replaceable brushes for extended motor life 7.2" frame — direct drop-in replacement High Performance flow class for superior airflow efficiency Specifications Frame Size: 7.2" Power: 1300W Voltage: 120V AC Stages: 3 Discharge: Bypass (Peripheral) Flow Class: High Performance Max Vacuum: 135" H₂O Max Airflow: 125 CFM Speed Control: None (Fixed Speed) Used in Mastercraft® Machines Industrial Ash Vacuum for High-Temp Cooled Residues — 426075 (635DCREM)

• OEM 3-stage bypass replacement motor rated at 1,300 watts and 120 volts for direct field service replacement
• Compatible with the Industrial Ash Vacuum, Enviromaster Probe 10 HEPA Backpack, and Pristal Squeegee Vacuum
• Three-stage bypass design delivers higher waterlift performance compared to 2-stage motors at the same watt class
• Drop-in replacement maintains original motor housing fitment and electrical connections for field serviceability
• Using genuine Mastercraft OEM motor preserves warranty coverage and HEPA compliance certification on regulated equipment
• Contact Mastercraft USA with model number and serial number to confirm compatibility before ordering and installation
